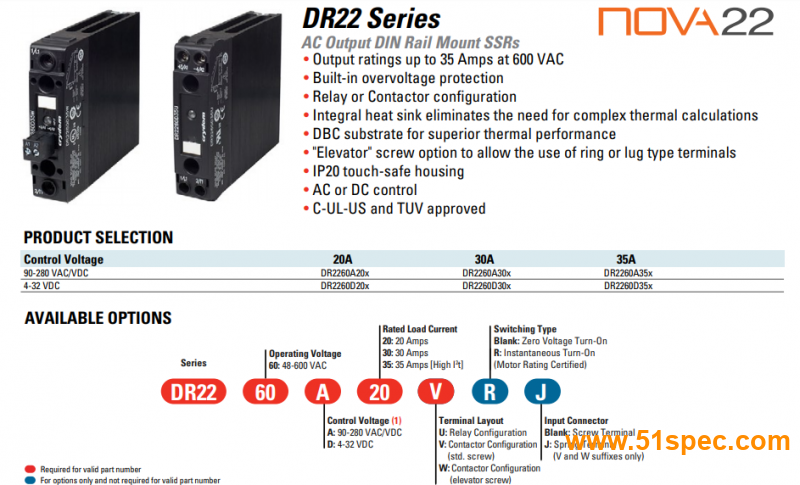

DR22 系列是一款安裝在寬 22.5mm 的 DIN 導軌上的固態繼電器，額定電壓為 600 VAC 時額定電流可達 35 安培。繼電器或接觸器端子配置具備多功能性，可在“螺釘”或“彈簧籠”接線端子上使用插入式連接器進行輸入控制。
這些功能強大且隨時可用的固態繼電器 （SSR） 裝配集成散熱片，無需進行復雜的熱計算。DR22 系列型號均經過 C-UL-US 認證。
DR22 系列交流輸出的其他功能部件包括：
內置的過電壓保護
導熱性能出色的 DBC 基板
允許使用環形或接線片端子的創新型“升降”螺釘選件
IP20 安全觸摸外殼
交流或直流控制
過零或瞬時導通輸出
| 零件編號 | 控制電壓 | 最大負載電流 | 線電壓范圍 | 安裝 |
|---|---|---|---|---|
| DR2260A20U | 90-280 VAC/VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260A20UR | 90-280 VAC/VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260A20V | 90-280 VAC/VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260A20VJ | 90-280 VAC/VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260A20VR | 90-280 VAC/VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260A20VRJ | 90-280 VAC/VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260A20W | 90-280 VAC/VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260A20WJ | 90-280 VAC/VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260A20WR | 90-280 VAC/VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260A20WRJ | 90-280 VAC/VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260A30U | 90-280 VAC/VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260A30UR | 90-280 VAC/VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260A30V | 90-280 VAC/VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260A30VJ | 90-280 VAC/VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260A30VR | 90-280 VAC/VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260A30VRJ | 90-280 VAC/VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260A30W | 90-280 VAC/VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260A30WJ | 90-280 VAC/VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260A30WR | 90-280 VAC/VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260A30WRJ | 90-280 VAC/VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260A35U | 90-280 VAC/VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260A35UR | 90-280 VAC/VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260A35V | 90-280 VAC/VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260A35VJ | 90-280 VAC/VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260A35VR | 90-280 VAC/VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260A35VRJ | 90-280 VAC/VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260A35W | 90-280 VAC/VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260A35WJ | 90-280 VAC/VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260A35WR | 90-280 VAC/VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260A35WRJ | 90-280 VAC/VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260D20U | 4-32 VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260D20UR | 4-32 VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260D20V | 4-32 VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260D20VJ | 4-32 VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260D20VR | 4-32 VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260D20VRJ | 4-32 VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260D20W | 4-32 VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260D20WJ | 4-32 VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260D20WR | 4-32 VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260D20WRJ | 4-32 VDC | 20 A | 48-600 VAC | DIN Rail |
| DR2260D30U | 4-32 VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260D30UR | 4-32 VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260D30V | 4-32 VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260D30VJ | 4-32 VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260D30VR | 4-32 VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260D30VRJ | 4-32 VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260D30W | 4-32 VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260D30WJ | 4-32 VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260D30WR | 4-32 VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260D30WRJ | 4-32 VDC | 30 A | 48-600 VAC | DIN Rail |
| DR2260D35U | 4-32 VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260D35UR | 4-32 VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260D35V | 4-32 VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260D35VJ | 4-32 VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260D35VR | 4-32 VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260D35VRJ | 4-32 VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260D35W | 4-32 VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260D35WJ | 4-32 VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260D35WR | 4-32 VDC | 35 A | 48-600 VAC | DIN Rail |
| DR2260D35WRJ | 4-32 VDC | 35 A | 48-600 VAC | DIN Rail |
| 安裝方式 | |
|---|---|
| 觸點型式 | |
| 控制輸入 | |
| 負載電壓 | |
| 負載電流 | |
| 觸發方式 | |
| 導通壓降 | |
| 導通時間 | |
| 關斷時間 | |
| 斷態漏電流 | |
| 熱阻系數 | |
| 絕緣耐壓 | |
| 防護等級 | |
| 工作溫度 | |
| 產品重量 | |
| 產品認證 |
